6 缸发动机

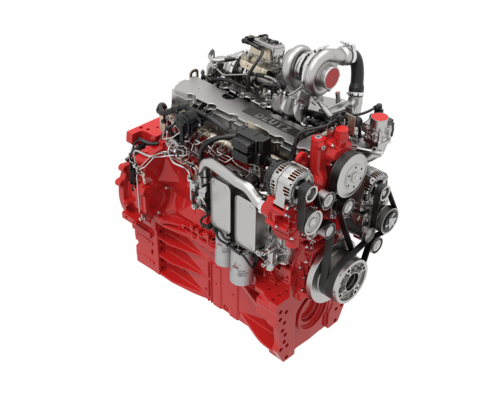

TTCD 7.8 L6 (Agri)
技术数据
- 排放标准
- US T4f, EU IV, EU V
- 气缸数量
- 6
- 缸径
- 110 mm
- 冲程
- 136 mm
- 排量
- 7.8 l
- 最大转速
- 2100 rpm
- 功率输出
- 291 kW (2100 rpm)
- 最大扭矩
- 1565 Nm (1500 rpm)
- 最低怠速
- 800 rpm
- 燃料消耗比
- 195 g/kWh
- 长度
- 1256 mm
- 宽度
- 708 mm
- 高度
- 1396 mm
- 重量
- 1220 kg
主要特征
Engine for agricultural machinery. Water-cooled 6-cylinder in-line engine with turbocharging and charge air cooling.
- Two-stage turbocharging and cooled external exhaust gas recirculation from EU Stage IV / US EPA Tier 4.
- Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure minimised fuel and total operating costs.
- The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
- Extremely compact DPF, which makes installation easier where there is limited space.
- 100% power take-off at flywheel and front end.
- The extremely compact engine design with structural oil pan and a customer-oriented, modular system of optional add-on parts reduce the installation costs and increase the number of applications.
- Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission legislation.
- Best cold starting performance even under extreme conditions.
- 500 h oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.
- The engines meet the requirements of the EU Stage IIIB and US EPA Tier 4 interim with SCR. Additionally for EU Stage IV / US Tier 4 with DVERT® Particle filter (DPF). A variant without EAT is available as an option for less regulated markets.
