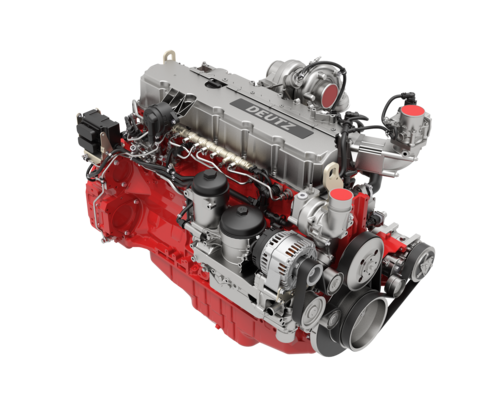

6 缸发动机
TCD 7.8 L6
技术数据
- 排放标准
- US T4f, CN IV, EU IV, EU V
- 气缸数量
- 6
- 缸径
- 110 mm
- 冲程
- 136 mm
- 排量
- 7.8 l
- 最大转速
- 2300 rpm
- 功率输出
- 260 kW (2300 rpm)
- 最大扭矩
- 1400 Nm (1450 rpm)
- 最低怠速
- 800 rpm
- 燃料消耗比
- 192 g/kWh
- 长度
- 1214 mm
- 宽度
- 842 mm
- 高度
- 1062 mm
- 重量
- 725 kg
主要特征
Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
- Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.
- Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws. The size and design of the engines will remain identical in the change to Stage V due to a protected technology. No changes to the customer‘s device. A variant without EAT is available as an option for less regulated markets.
- The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
- The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and particulate filter (DPF). Through the use of the DPF they already comply with the EU Stage V emissions standard expected from 2019.*
