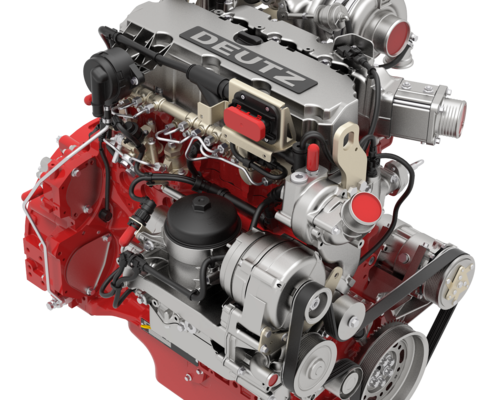

4 缸发动机
TCD 5.2
技术数据
- 排放标准
- EU 4, US T4f, CN IV, EU V
- 气缸数量
- 4
- 缸径
- 110 mm
- 冲程
- 136 mm
- 排量
- 5.2 l
- 最大转速
- 2200 rpm
- 功率输出
- 170 kW (1300 rpm)
- 最大扭矩
- 950 Nm (950 rpm)
- 最低怠速
- 800 rpm
- 燃料消耗比
- 196 g/kWh
- 长度
- 921 mm
- 宽度
- 695 mm
- 高度
- 902 mm
- 重量
- 530 kg
主要特征
Water-cooled 4-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
- Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.
- Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws.
- The size and design of the engines will remain identical in the change to Stage V due to a protected technology. No changes to the customer‘s device. A variant without EAT is available as an option for less regulated markets.
- The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
- The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and particulate filter (DPF). Through the use of the DPF they already comply with the EU Stage V emissions standard expected from 2019.*
- Best cold starting performance even under extreme conditions.
- Long oil change intervals and easy changing of the engine fluids reduce the running cost and increase the availability of the machinery.
