4 缸发动机

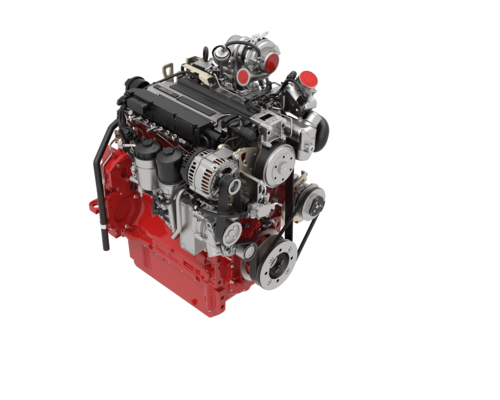

TCD 4.1 L4 (Agri)

主要特征

Engine for agricultural machinery. Water-cooled 4-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.

• 6-cylinder optionally with two-stage turbocharging for the highest performance requirements.
• Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure minimised fuel and total operating costs.
• The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
• 100% power take-off at flywheel and front end.
• The extremely compact engine design with structural oil pan and a customeroriented, modular system of optional add-on parts reduce the installation costs and increase the number of applications.
• Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission legislation.
• Best cold starting performance even under extreme conditions.
• Very smooth running due to optional mass balancing shafts (4 cylinder) guarantees a level of driving comfort.
• 500 h oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.
• The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and particulate filter (DPF). Through the use of the DPF they already comply with the EU Stage V emissions standard expected from 2019.* A variant without EAT is available as an option for less regulated markets.
