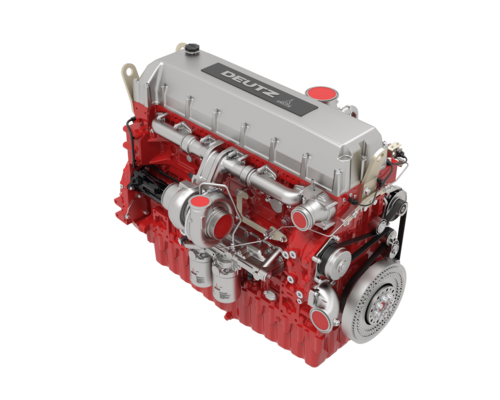

6 缸发动机
TCD 18.0 L6
技术数据
- 排放标准
- US T4f, CN IV, EU V
- 气缸数量
- 6
- 缸径
- 148 mm
- 冲程
- 174 mm
- 排量
- 18 l
- 最大转速
- 1900 rpm
- 功率输出
- 623 kW (1700 rpm)
- 最大扭矩
- 3650 Nm (1300 rpm)
- 最低怠速
- 600 rpm
- 长度
- 1546 mm
- 宽度
- 976 mm
- 高度
- 1284 mm
- 重量
- 1763 kg
主要特征
Water-cooled 6-cylinder inline engines with turbo-charging and with charge air cooling.
- Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.
- Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws. The size and design of the engines will remain identical in the change to US Tier 4 and EU Stage V due to a protected technology.
- No changes to the customer‘s device. A variant without EAT is available as an option for less regulated markets.
- The powerful Common Rail injection system and the electronic engine control with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
- Long oil change intervals and easy changing of the engine fluids reduce the running cost and increase the availability of the machinery.
- Best cold starting performance even under extreme conditions.
- The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
- In terms of aftertreatment, for higher regulated markets, the engines are expected to have no EGR and meet Stage 5 and US Tier 4 emissions regulations using a SCR. For lower regulated markets the engines will meet the requirements without further exhaust aftertreatment.
