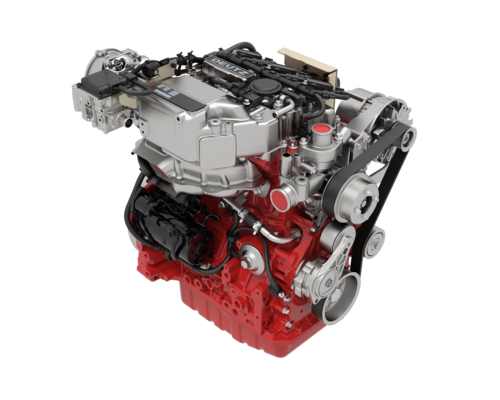

3 缸发动机
G 2.2 L3
技术数据
- 排放标准
- US T2, EU V
- 气缸数量
- 3
- 缸径
- 92 mm
- 冲程
- 110 mm
- 排量
- 2.2 l
- 最大转速
- 2800 rpm
- 功率输出
- 41.5 kW (2800 rpm)
- 最大扭矩
- 160 Nm (1600 rpm)
- 最低怠速
- 900 rpm
- 长度
- 576 mm
- 宽度
- 647 mm
- 高度
- 747 mm
- 重量
- 208 kg
主要特征
Newly-designed, water-cooled 3-cylinder spark ignited LPG engine.
- Robust engine design for demanding industrial applications based on the successful TCD 2.9 series.
- Full electonic controlled LPG gas system, stoichiometric combustion, closed loop control and knocking sensors for lowest emissions and best performance at the same time.
- Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles.
- Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas powered machines.
- Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
- The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
- 100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps.
- Compact 3-way catalyst for future EU Stage V and EPA Tier 2 compliance.
